KEF Ci160T Series In Wall and In Ceiling Speakers

$349.99

Introducing the new KEF Ci160T THIN Series, requiring minimal mounting depth of under 36mm. Specifically designed for tight ceiling spaces, like those found in modern luxury high-rise apartments or your personal music system.

The Ci160T Series boasts the latest 4.5in. mid/bass T Series driver and a powerful 1in. tweeter, offering an ultra-slim design for top-notch KEF sound quality in spaces where ceiling room is limited. With less than 36mm of mounting depth, the Ci160TR snugly fits into narrow ceiling spaces, perfect for high-end apartments or enhancing your music setup.

Key Features:

Fits snugly in cavities with less than 36mm depth
Ultra-low profile LF unit for excellent bass extension
Vented tweeter with KEF’s unique ‘tangerine’ waveguide for natural HF response and wide dispersion
Rigid flat diaphragm ensures clean upper bass and mid-range response
Paintable Ultra-Thin Bezel (UTB) and magnetic grille blend seamlessly with décor
Fast, versatile installation on virtually any surface via dogleg or direct screw fastening

PRICED PER EACH.

SKU: N/A Category: KEF Speakers

Description

SPECIFICATIONS TR:

Nominal Impedance

8 Ohm

Sensitivity

87dB (2.83V/ 1m)

Crossover Response

1.7kHz

Frequency Response

110Hz – 24kHz (±6dB) open backed

Drive Units

LF: 115mm (4.5 in.) dual layer MF
HF: 25mm (1 in.) aluminium HF

Recommended Amplifier Power

10-100W

Product External Dimension (H X W X D)

Diameter: 234.6mm (9.24 in.)
Depth: 40mm (1.57 in.)

Cut-Out Dimensions (h X W)

196mm (7.71 in.)

Mounting Thickness

Ceiling Thickness (Maximum): 26mm (1.03 in.)
Ceiling Thickness (Minimum): 9mm (0.36 in.)

Mounting Depth From Surface

36mm (1.42 in.)

Optional Rough In Frame

RIF160R

Optional Rear Enclosure

RNC160R

Net Weight

1.kg

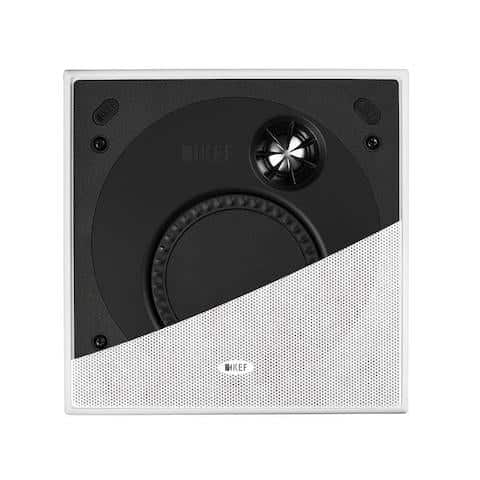

SPECIFICATIONS TS:

Nominal Impedance

8 Ohm

Sensitivity

87dB (2.83V/ 1m)

Crossover Frequencies

1.7kHz

Frequency Response

110Hz – 24Hz (+/-6dB) open-backed

Drive Units

LF: 115mm (4.5in. Dual layer)
HF: 25mm (1in.)

Recommended Amplifier Power

10-100W

Product External Dimension (H x W x D)

Diameter : 222.8×222.8 mm (8.77 x 8.77 in.)
Depth : 41mm (1.61in.)

Cut-Out Dimensions (H x W)

194 x 194 mm (7.64 x 7.64 in.)

Mounting Thickness

Ceiling Thickness (Maximum): 26mm (1.03 in.)
Ceiling Thickness (Minimum): 9mm (0.36 in.)

Mounting Depth From Surface

<36mm (1 7/16in.)

Optional Rough In Frame

RIF160S

Optional Rear Enclosure

RNC160S

Net Weight

1.05kg (2.31lbs)

Additional information

CI160T	TR, TS
